Directions: Read carefully.
1.

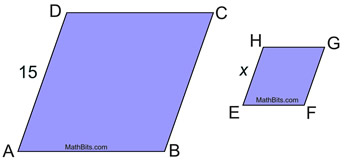

Rhombus ABCD and rhombus EFGH are similar with a ratio of similitude of 5 : 2. Find x.
Choose:

A rhombus is a quadrilateral
with four equal sides.


2.
ΔCAT and ΔDOG are shown at the right. You are told that m∠A and m∠O are each 58º.
Find DO.
Choose:



3.
Which of the following triangles are always similar?
Choose:



4.
Given the overlapping triangles shown at the right. Notice the parallel segments.
Find x.
Choose:



5.
Given: These two regular polygons are similar. What is their ratio of similitude (from larger to smaller)?
Choose:

A regular polygon has all of its sides of equal length and all of its angles of equal measure.

6.
Two triangle roofs are similar. The corresponding sides of these roofs are 16 feet and 24 feet. If the altitude of the smaller roof is 6 feet, find the corresponding altitude of the larger roof.
Choose:



7.
In ΔABC, m∠A = 90º and m∠B = 35º.
In
ΔDEF, m∠E = 35º and m∠F = 55º.
a) Are these triangles similar? Explain.
Choose:



b) If AB = 30, AC = 40, and DE = 24, what is the length of DF?
Choose:


8.

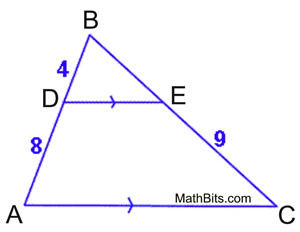

Given the diagram at the right with .
Find BC.
Choose:



9.

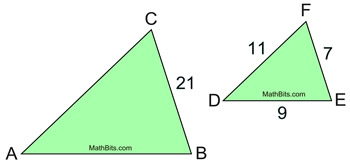

ΔABC is similar to ΔDEF as shown. The shortest side of the larger triangle is 21. What is the perimeter of the larger triangle, ΔABC?
Choose:



10.

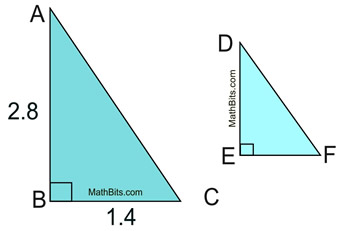

The legs of right ΔABC are 2.8 inches and 1.4 inches.
If right ΔDEF is similar to ΔABC, which of the following lengths could represent the legs of ΔDEF?
(Choose all that apply and hit SUBMIT!)
Diagrams are not drawn to scale.



11.

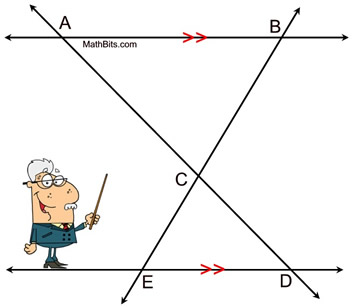

Given the diagram shown at the right with parallel lines indicated.
a) Explain why Δ ACB is similar to
Δ DCE
b) If m∠ ACE = 112º, find
m∠ ABC + m∠ CDE. Explain your answer.



12.

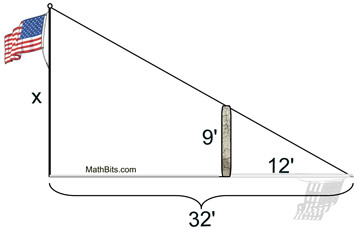

A vertical flagpole casts a shadow 32 feet long at the same time that a nearby vertical 9 foot post casts a shadow 12 feet long. What is the height of the flagpole in feet?
Choose:
