Let's see what vocabulary is needed to discuss the graphs of trigonometric functions.

dividerdash

bullet midline:

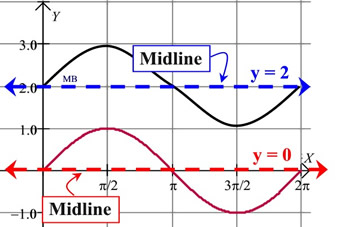

A midline of a sinusoidal function is the horizontal center line about which the function oscillates above and below. For y = sin x, the midline is y = 0 (the x-axis). The midline is parallel to the x-axis and is located half-way between the graphs maximum and minimum values.

The midline is affected by any vertical translations to the graph. For example, y = sin(x) + 2 has a midline at y = 2.

midline

dividerdash

bullet amplitude:
unitcircle1N
The maximum of y = sin x is 1.
The minimum is -1.
The
amplitude is ½ (1 - (-1)) = 1.

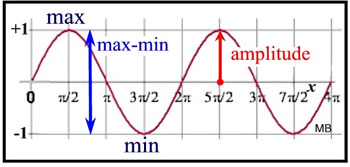

The amplitude of a sinusoidal function is one-half of the positive difference between the maximum and minimum values of a function.
amp
It is simply the vertical distance from the x-axis (or midline) to the highest (or lowest) point on the curve. Amplitude is the magnitude (height) of the oscillation (wave) of a sinusoidal function.

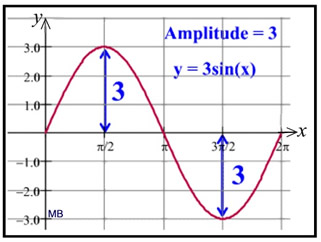

amppic1
maximum = +3, minimum = -3
amplitude = ½ (+3 - (-3)) = 3
As a distance measurement, amplitude is always positive.

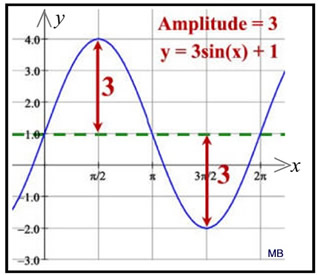

amppic3a
maximum = +4, minimum = -2
amplitude= ½ (+4 - (-2)) = 3
Note: Look carefully at the two graphs shown above. At first glance they may look to be the same. But the graph on the right is a vertical shift of the graph on the left. While vertical shifts alter the maximum and minimum values of a function, they do not alter the amplitude. Also, horizontal shifts do not affect the amplitude.

dividerdash

bullet period:

A periodic function is a trigonometric function which repeats a pattern of y-values at regular intervals.  One complete repetition of the pattern is called a cycle.  The period of a function is the horizontal length of one complete cycle.

The period may also be described as the distance from one "peak" (max) to the next "peak" (max).

unitcircle1N

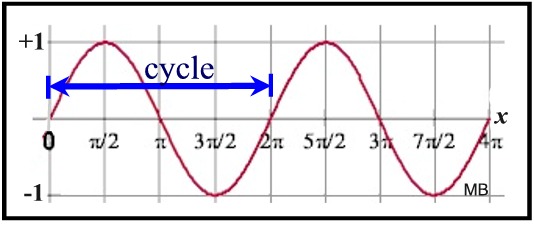

This sine curve, y = sin x, has a period of 2π,
the horizontal length of one complete cycle.

In functional notation we could say:  The period is the smallest value of k in a function f for which there exists some constant k such that f (t) = f (t + k) for every number t in the domain of f.

dividerdash

bullet frequency:

The frequency of a trigonometric function is the number of cycles it completes in a given interval. This interval is generally 2π radians (or 360º) for the sine and cosine curves.
In terms of a formula: f
It is also true that: prefre

unitcircle1N
This sine curve, y = sin x, completes 1 cycle in the interval from 0 to 2π radians. Its frequency is 1 in the interval of 2π.
FYI: In application problems, when frequency is measured "per second" it is called "Hertz"
(10 Hertz means 10 times per second).

dividerdash

bullet sinusoidal curve:

A sinusoidal curve is the graph of the sine function in trigonometry.

A sinusoid is the name given to any curve that can be written in the form
 d

The example at the right is
f
phasepic5

The cosine wave is also said to be sinusoidal because of the relationship

dd
which makes it the sine wave with a
horizontal shift.

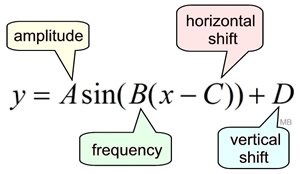

sinpicture
The cosine function, which appears to have a "head start" on the sine function, is often said to lead the sine function (or the sine function lags the cosine function). Both sine and cosine fall under the category of sinusoids, since the cosine graph is simply a 90º shift to the left of the sine graph. The sine and cosine functions are the most popular of the trigonometric functions used for modeling.

dividerdash

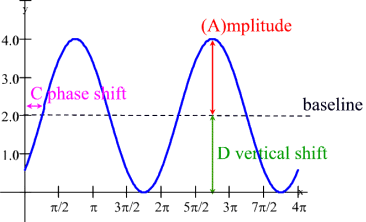

bullet horizontal shift, phase shift:
sd    ff
From the sinusoidal equation,
           d
the horizontal shift is obtained by determining the change being made to the x-value.

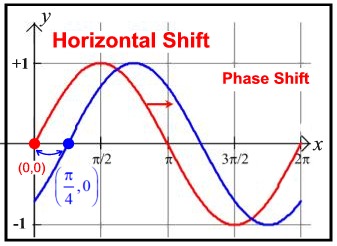

The horizontal shift is C.

In mathematics, a horizontal shift of a trigonometric function may also be referred to as a phase shift.
(see more about phase shift)

phaseshift1a
Remember that the expression (x - C) from the sinusoidal equation, may look like:
• (x - 2) where 2 is a positive value being subtracted, when the shift is to the right.
• (x + 2) where 2 is a negative value being subtracted, when the shift is to the left.


divider
