Topics: maximum/minimum, symmetry and end behavior.
If looking for Intercepts, Positive/Negative, and Increasing/Decreasing, see Function Features.
dividerdash

maxmin
"Turning Points"

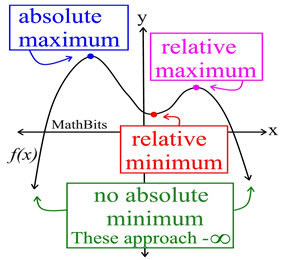

A "turning point" on a graph is a point at which the graph changes from increasing to decreasing (it looks like a "hill"), or from decreasing to increasing (it looks like a "valley").

These turning points are referred to as relative (or local) maxima or minima. The designation of "relative" (or "local") tells you that this point may not be the largest (or smallest) value reached by this function. It is only a maximum (or minimum) "relative" to a small interval of the function surrounding this point.

graphturning
The one, true, largest (or smallest) value reached by the entire function is called the absolute maximum (or minimum), or the global maximum (or minimum).

There is some disagreement among textbook authors as to whether a relative maximum (or minimum) can occur at an endpoint (on a closed interval). Some references say "a relative max/min must occur in an open interval within the domain" (not at an endpoint), while others say "a relative max/min may occur at an endpoint." Some texts even introduce the terminology "endpoint maxima/minima" to avoid this issue. Note: An "absolute" maximum (or minimum) can occur at an endpoint.

A relative maximum may also be an absolute maximum. In the graph shown above, the absolute maximum is also a relative maximum.

The plural of maximum is maxima,
and the plural of minimum is minima.
Such references fall under the category of "extrema".
ti84c
For calculator
help with
maximum and minimum
click here.

symmetry

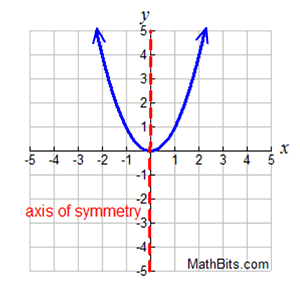

We have seen that the graph of a parabola is a symmetric graph. The graph has an axis of symmetry over which the graph becomes a reflection (or mirror image) of itself.

We saw, when graphing parabolas, that knowing one portion of the graph let us quickly know how to graph its symmetric portion as well.

Not all graphs have symmetry. Of those functions that do possess symmetry, there are two types of symmetries that are popular: vertical symmetry and symmetry about the origin.

symmetrygraph1
If a graph possesses horizontal symmetry (such as a reflection over the x-axis), the graph is not a function.
symgraph2
possesses both (x,y) and (x,-y).
A function graph may possess vertical symmetry (such as a reflection over the y-axis).

symgraph3
possesses both (x,y) and (-x,y).
A function graph may possess symmetry about the origin (0,0).
This is the same as a rotation of 180ยบ
symgraph4
possesses both (x,y) and (-x,-y).
FYI: If a function is symmetric with respect to the y-axis (a reflection over the y-axis), it is called an even function.
If a function is symmetric with respect to the origin (a rotation of 180 degrees about the origin), it is called an odd function. NOT "all" functions are even function or odd functions.

dividerdash


end See more information on "end behavior" under Graphing Polynomial Functions.

def
End behavior refers to the appearance of a graph as it is followed farther and farther in either direction (as the x-value gets very large or very small).

We have seen graphs with an arrow on either (or both) ends of the function indicating that the function continues "in the same manner" as the x-values continue to increase or decrease.

In the graph at the right, the arrow on the right end of the function tells us that as the x-values get larger and larger, the function (the y-values) will also get larger and larger. We say: "as x approaches positive infinity, f (x) approaches positive infinity." And we write:endm1

The arrow on the left end of this function says, as the x-values get smaller and smaller, the function will get smaller and smaller. We say: "as x approachers negative infinity, f (x) approaches negative infinity."
And we write: endm2.

endgraph
The arrow (→) is read "approaches".
Other possibilities:
endgraph2
Both ends approaching positive infinity.
endm1a
endm1b
endgraph3
Right end approaching + infinity.
Left end approaching zero.
endm1a
endm2bb
endgrph4
Right end approaching + infinity.
Left end approaching three.
endm1a
endm2c

dividerdash

ti84c
For calculator
help with
determining
end behavior

click here.
